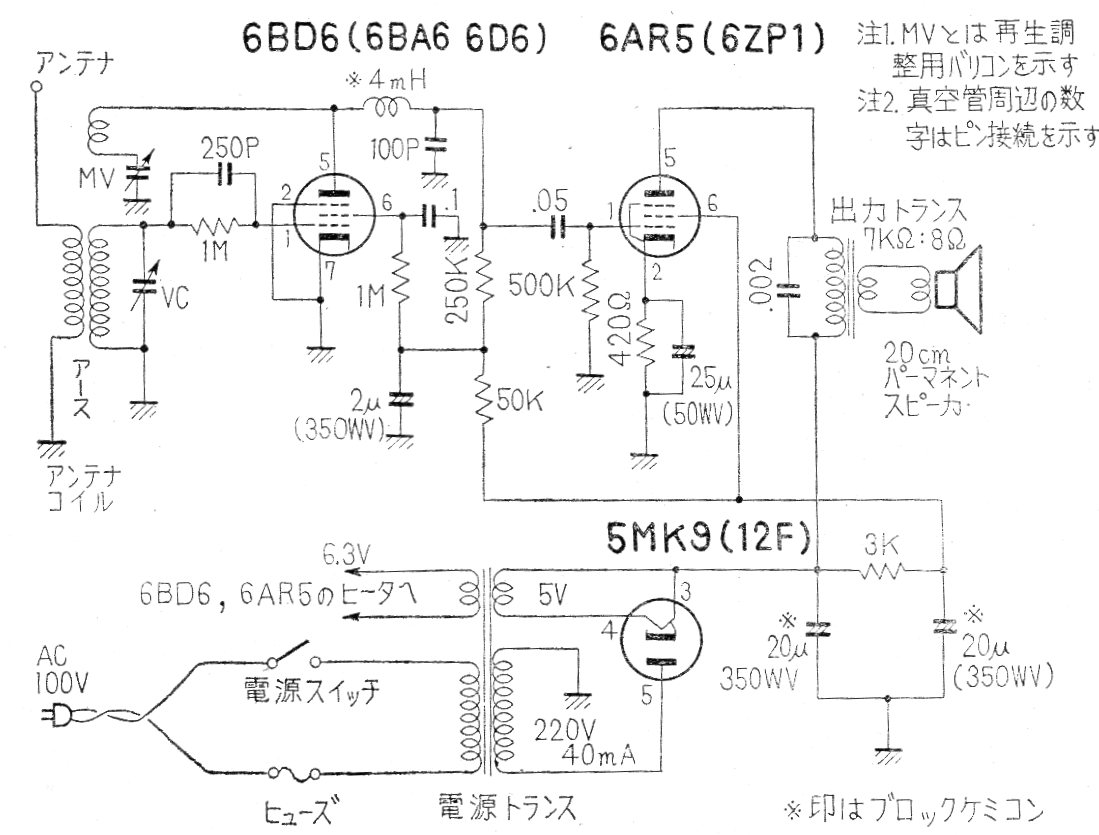

This circuit uses tubes that can still be found, except the rectifier. However, the rectification can be modified to use diodes such as 1N4007. The circuit is from a 1962 publication and transformers are the most critical elements.
