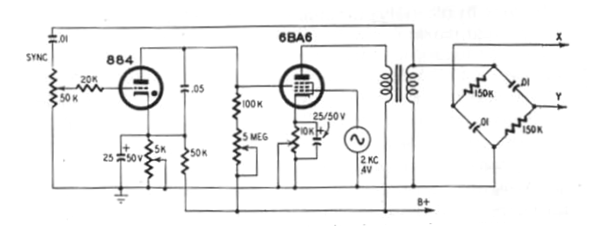

This circuit, obtained in an early publication on oscilloscopes of the 1940s, generates a spiral signal, using it in some applications at the time. Power must be supplied with voltages from 150 to 250 V. The potentiometers adjust the frequency and the type of signal that is obtained with the circuit. In the second figure we have the obtained signal.
