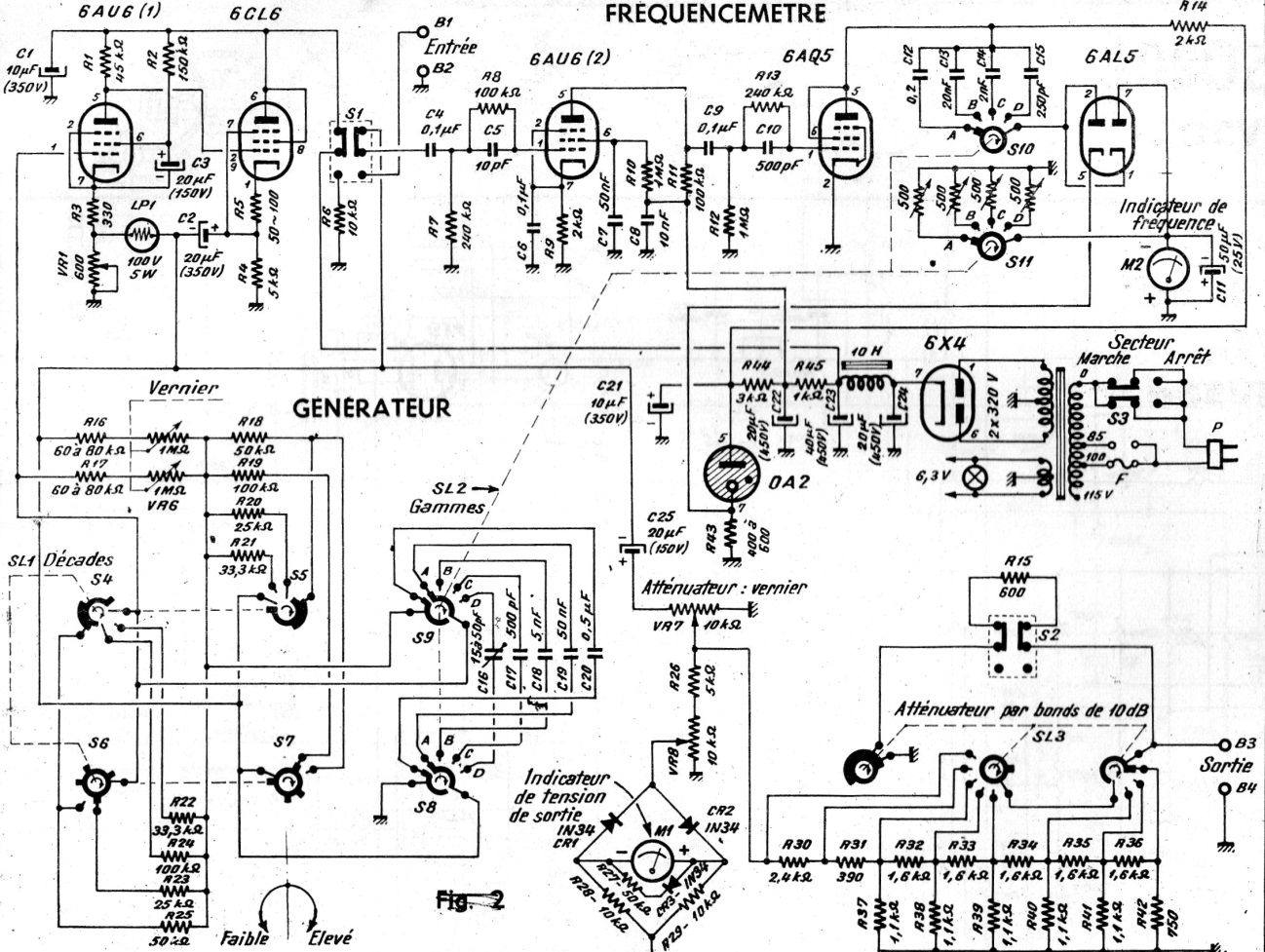

The circuit presented is of an analog frequency meter for higher scale audio signals around 100 kHz. The circuit was widely used in the 1960s and 1970s for repairing amplifiers as well as adjusting and verifying the response curve. Critical components are tubes and transformers, as well as filter shock. The circuit is valid for eventual recovery of such equipment.
