Synchronized Astable (T270E)

Details: Written by: Newton C. Braga

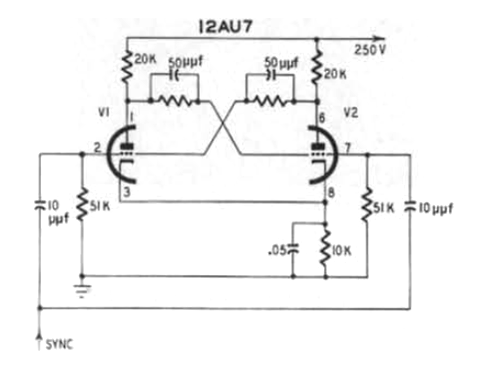

The circuit presented, found in a documentation about oscilloscopes of the 50s, is synchronized by an external signal, being used in oscilloscopes of the time. The power is a few milliamperes.
