Rectifier With Triode Tube (T275E)

Details: Written by: Newton C. Braga

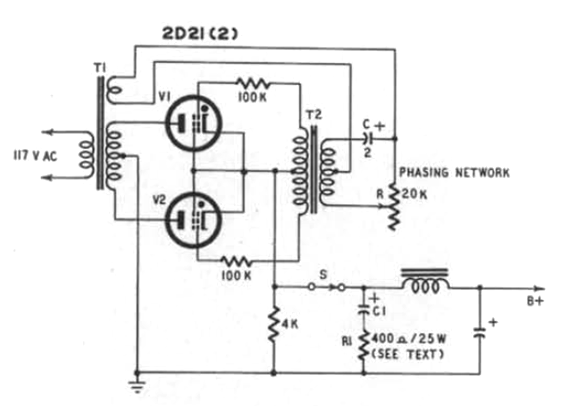

This power supply with gas triode valves for currents up to 200 mA was found in a 1950s oscilloscope documentation. The output voltage depends on the transformers.
