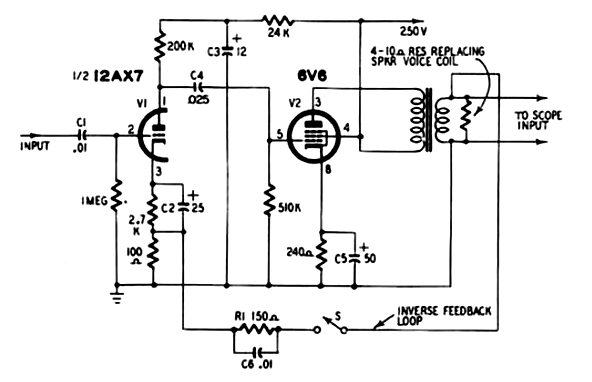

This simple audio amplifier has a output power of a few watts. The circuit was obtained from a 1950s documentation. The power supply should supply a few tens of milliampere current and the critical component is the output transformer as well as the tubes themselves.
