Input amplifier (T376E)

Details: Written by: Newton C. Braga

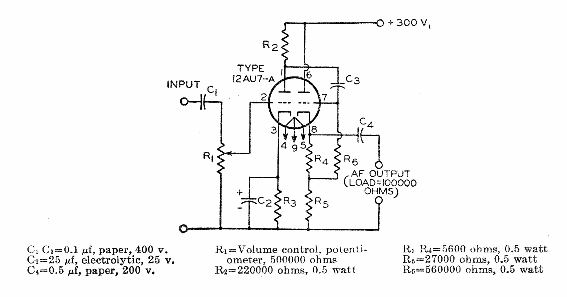

This two-stage amplifier has high input impedance and low impedance output. The power supply is not given. The circuit is from the 1961 RCA tube manual.
