Full-Wave AC Switch II (MEC138E)

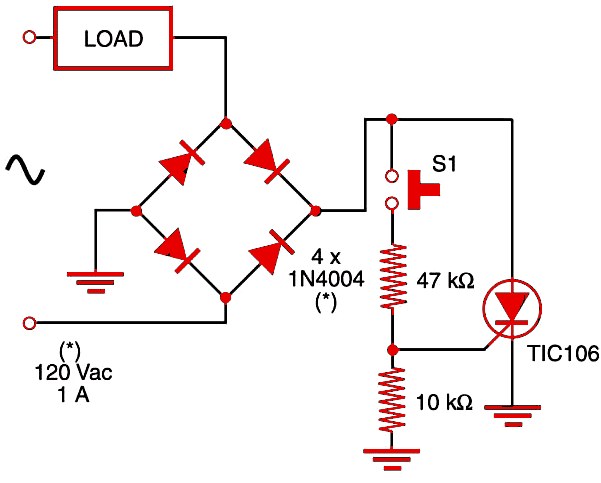

Figure 1 Full-wave ac switch II.

See MEC138E for more information about the diodes. The SCR must be mounted on a heatsink according the power of the controlled load.
