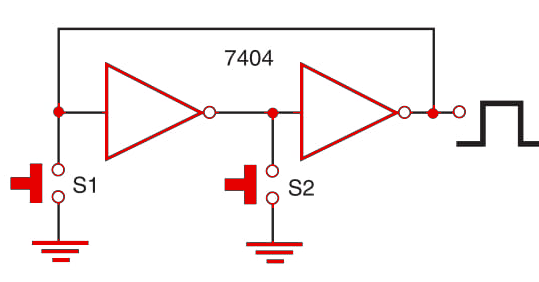

Figure 1 - Contact conditioner for two sensors.
Since it is a TTL circuit, the power supply must be a 5 V unit. Any equivalent of the 7404, or any inverting function, can be used in this block. Other articles in this section suggest blocks that can be controlled by this circuit, increasing the output power.
