1 to 1 Astable Using the 555 (CB863E)

Details: Written by: Newton C. Braga

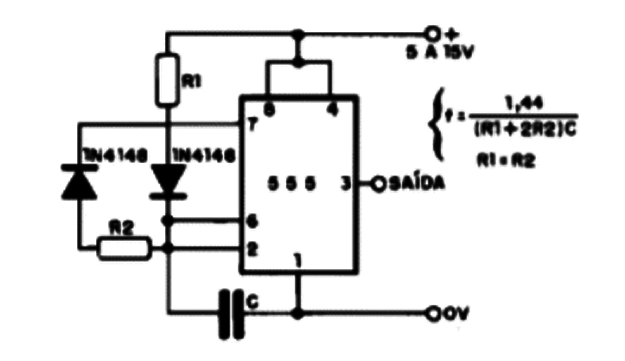

An stable multivibrator with 50% of duty cucle can be mounted using the 555 as shown by the figure. The formula in the figure allows the reader to calculate the frequency.
