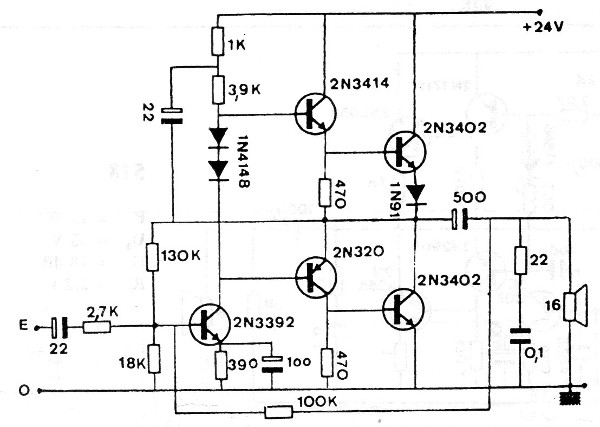

2.5 W Transistorized Amplifier (CB1316E)

Details
Written by: Newton C. Braga

This amplifier with complementary symmetry output and good sound quality was found in documentation from the 1980s. The output transistors can be the BD136 and BD136 with heatsinks. The gain is 20 dB and the input resistance is 15 k.
