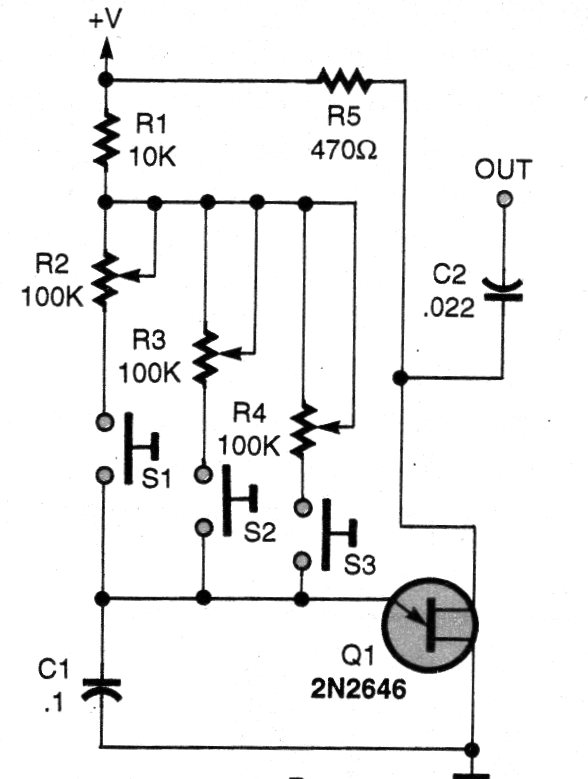

Depending on the key pressed, this oscillator produces a different tone, set in the corresponding trimpot. The circuit must be connected to a stage of amplification and its power can be made with voltages of 6 to 9 V. We found this circuit in a publication of the 90's.
