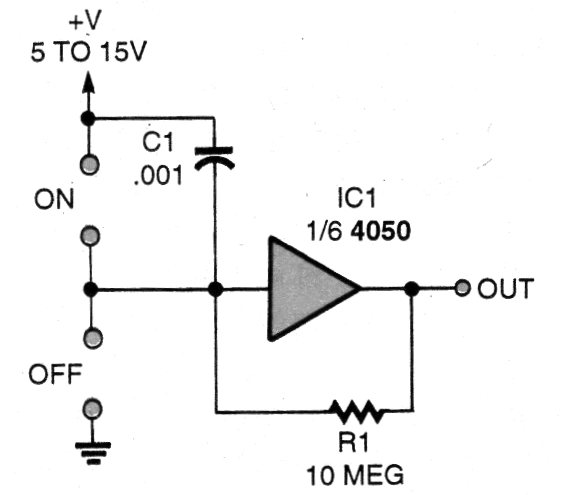

This circuit uses one of the 6 CMOS inverters of a 4060 as a touch on / off switch. The power supply must not be without transformer, and the power supply depends on the application. The output can be used to drive a relay or as input for a microcontroller operating as a shield.
