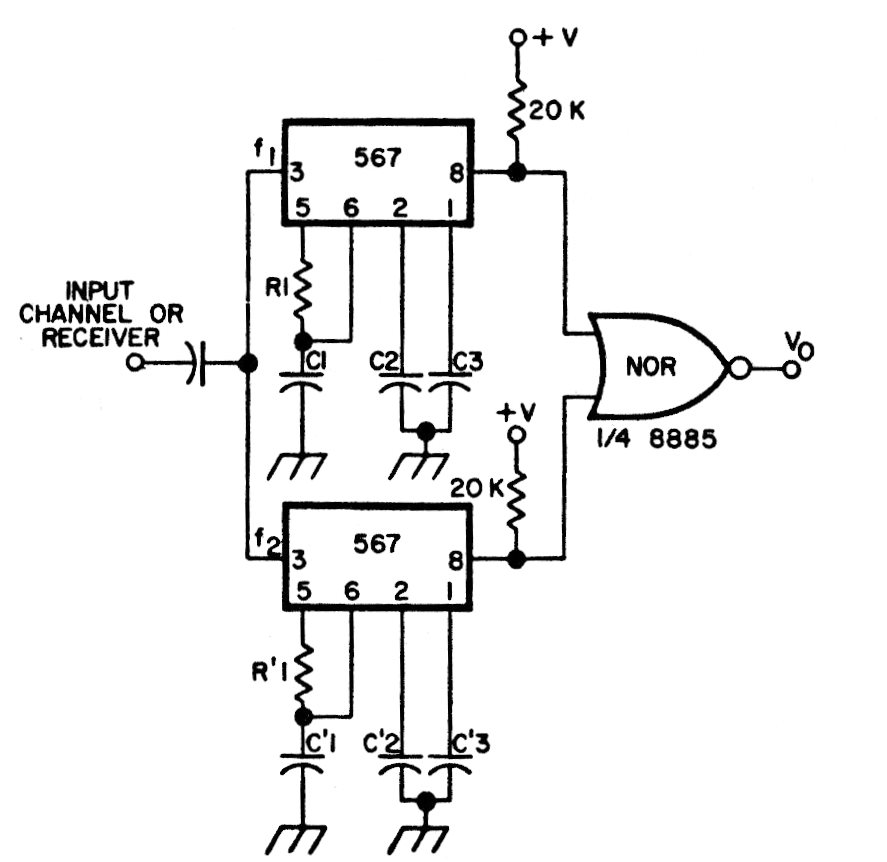

This circuit with the known PLL 567 can be found in other versions in this section and in this site. It serves to decode two successive tones by triggering a load that can be a relay driver, The circuit can be used in remote control. The maximum supply voltage is 10 V.
