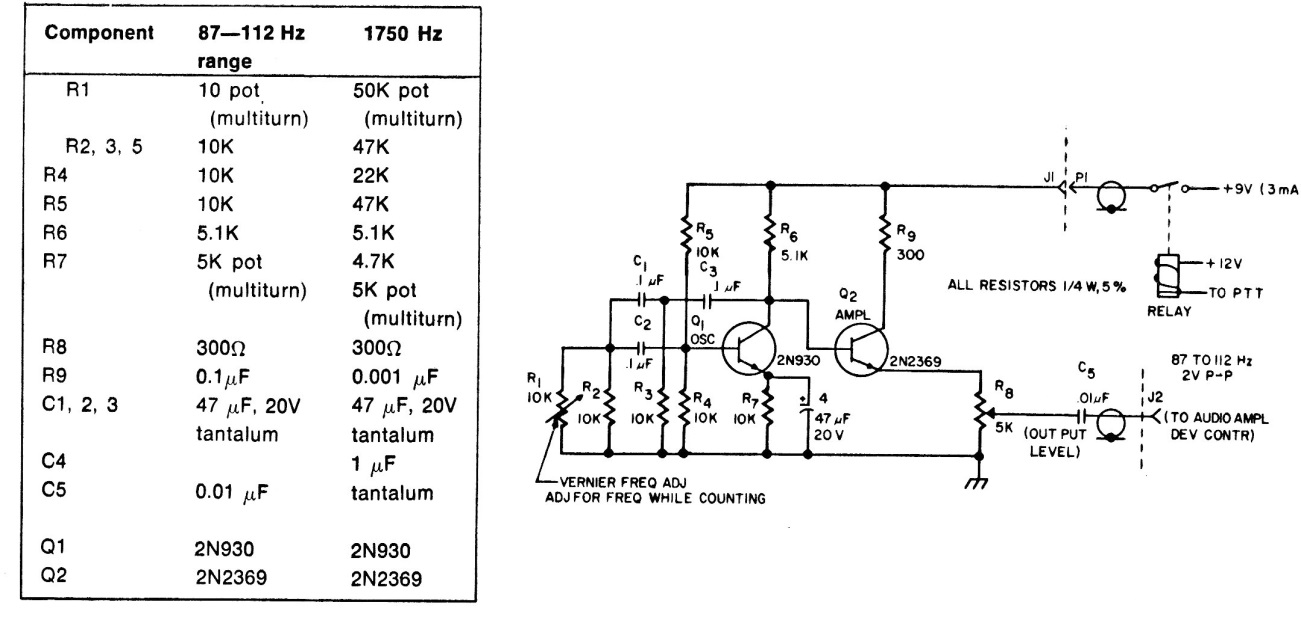

This circuit was found in an old 1970s telecommunication documentation. It is suitable for applications in CTCSS systems such as silencer or muffler. The components may have equivalents. The values in the diagram are for low frequencies.
| Clique na imagem para ampliar |
