Motor Oscillator (CB3975E)

Details: Written by: Newton C. Braga

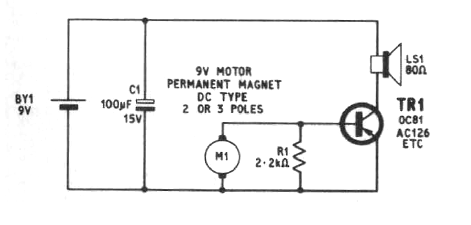

This circuit mimics the sound of a siren when we turn the axis of the small DC motor. The transistor can be a BD136 or TIP32 and the power can be between 3 and 12 V.
