Wien Bridge Oscillator (CB4024E)

Details: Written by: Newton C. Braga

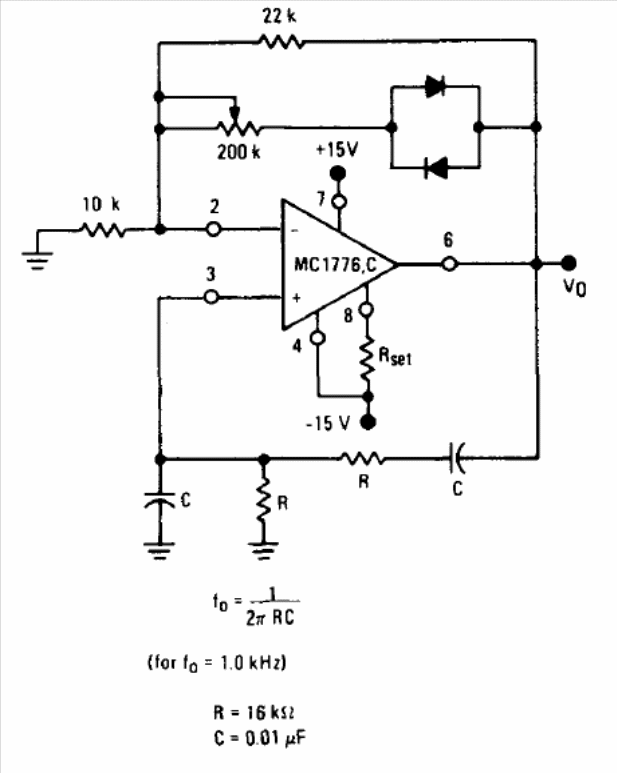

We found this circuit in the Motorola Linear Databook of 1993. It is the traditional configuration with operational amplifier and general-purpose diodes that can be implemented with equivalent operational amplifiers.
