Multi-Feedback Band Pass Filter (CB4025E)

Details
Written by: Newton C. Braga

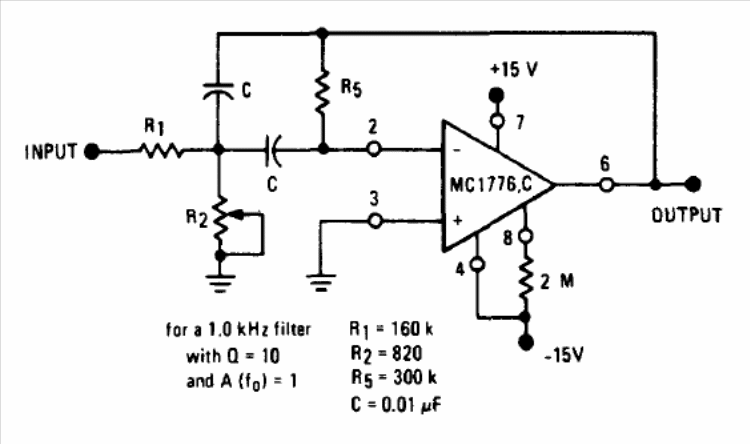

   This circuit is from the Motorola Linear Databook published in 1990. The circuit for 1 kHz can be implemented with other operational amplifiers and components changed to other frequencies.
