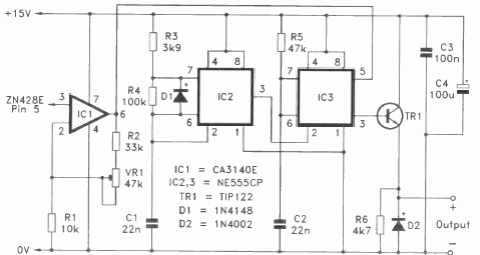

Pulse motor control (CB20554E)

Details
Written by: Newton C. Braga



This circuit was found in the PC documentation from 1996. The maximum current of the motor is determined by the transistor.
