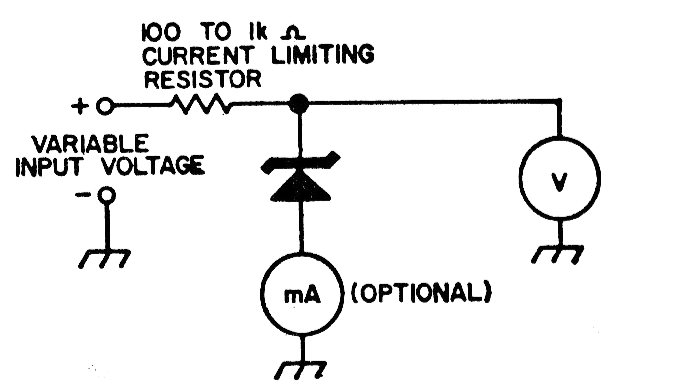

With this simple circuit found in an American 1980s documentation, it is possible to determine the breaking voltage of a zener diode. Voltage is obtained when diode conduction occurs or when the measured voltage at the output stabilizes.
