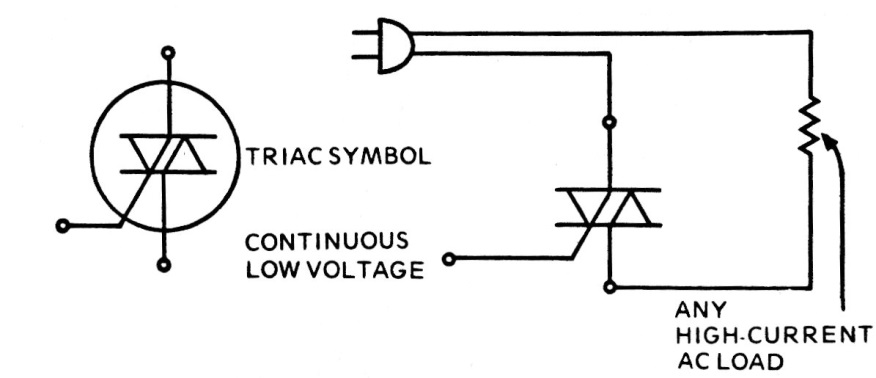

In the figure we have the conventional configuration to use a triac to control a power load from the power grid. The control voltage is continuous and the triac must be equipped with a heatsink according to the controlled load.
