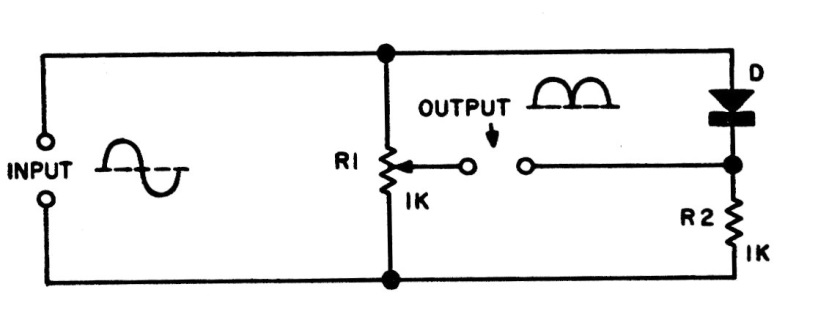

This interesting low current circuit uses only one diode to obtain a full wave rectified signal. Of course, by component values, the output current is a few milliamps maximum. The circuit can be scaled to larger currents.
