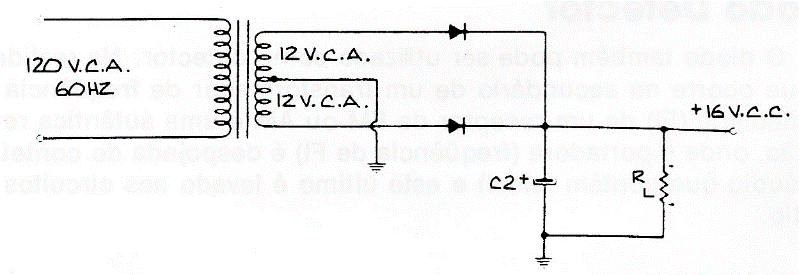

This is the traditional unregulated power supply configuration with full wave rectification. For currents up to 1 A use 1N4002 diodes. The capacitor can have values from 470 uF to 10,000 uF, depending on the desired degree of filtration.
