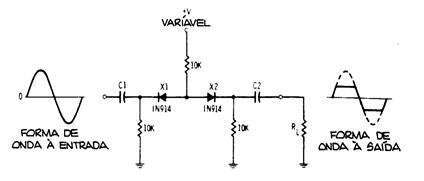

This circuit, which appears elsewhere in this section but from other sources, was found in a book by A. Fanzeres of the 1990s. The circuit is for small signals and capacitors should have values according to the circuit operating frequency.
