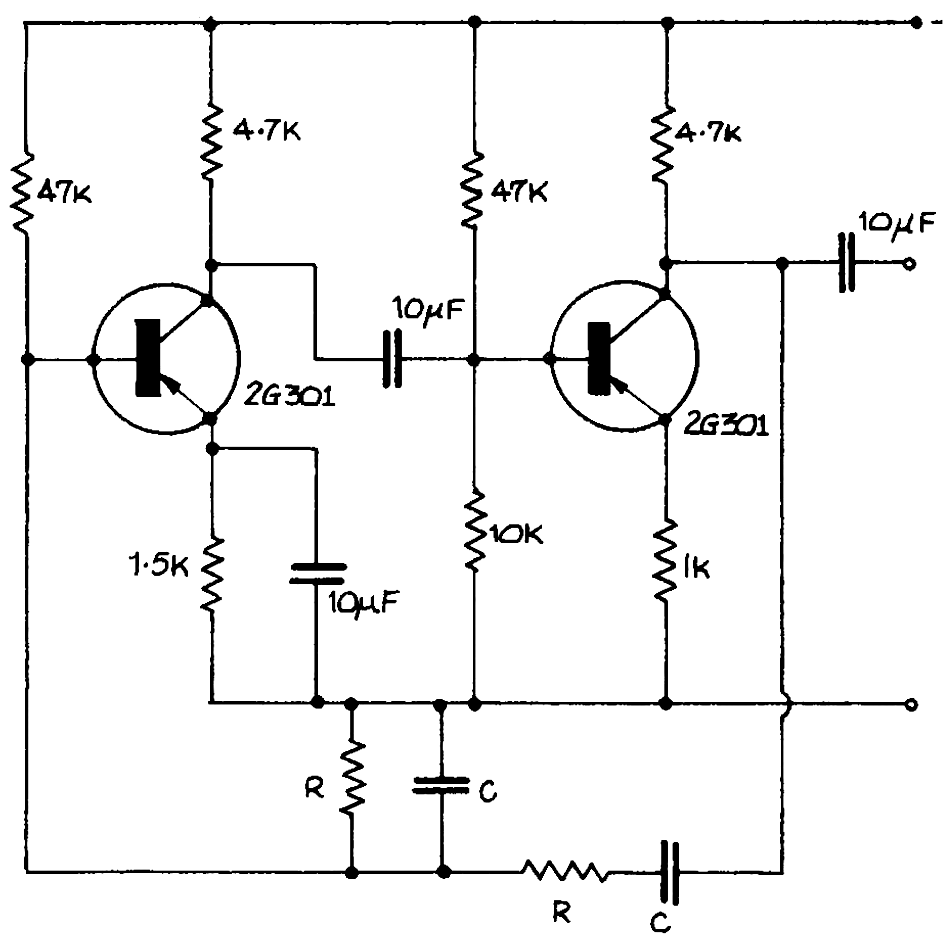

This is one of many possible configurations for this type of oscillator that generates sinusoidal signals whose frequency is given by R and C. The transistors support general purpose equivalents. Power can be between 9 and 15 V depending on the transistors used.
| Clique na imagem para ampliar |
