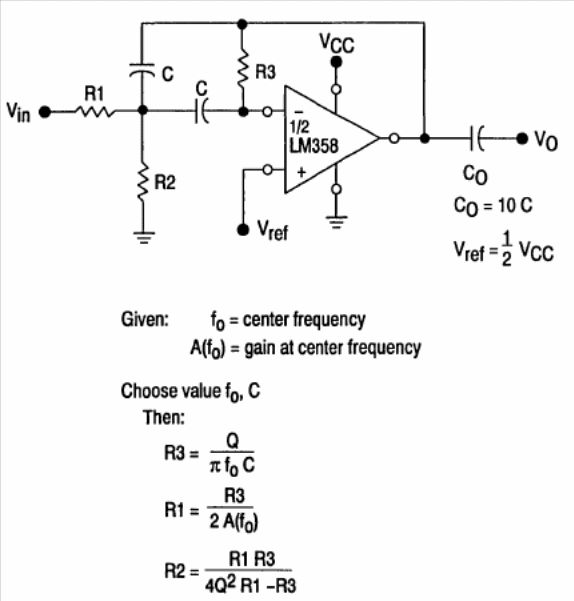

We found this circuit in Motorola's 1993 Linear Interface ICs. The power supply does not have to be symmetrical and other series operational like the LM258, LM358 and LM2904 can be used. The frequency is calculated by the formulas next to the diagram.
