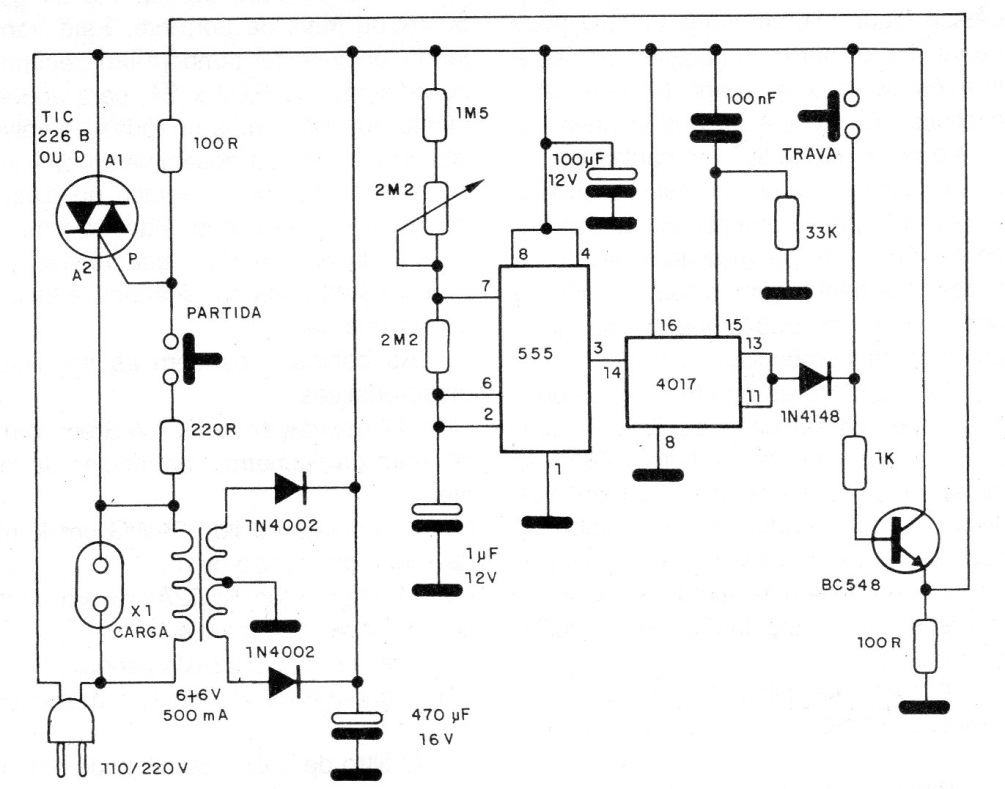

This circuit was found in a 1989 documentation. The circuit directly controls a power load by the use of a triac. The time is given by adjusting the potentiometer acting on the 555. The long intervals are obtained by using a divider by 10 with the 4017. The triac must be equipped with a heat sink.
