Gain 10 Non Inverting Amplifier MC1536 (CB4494E)

Details: Written by: Newton C. Braga

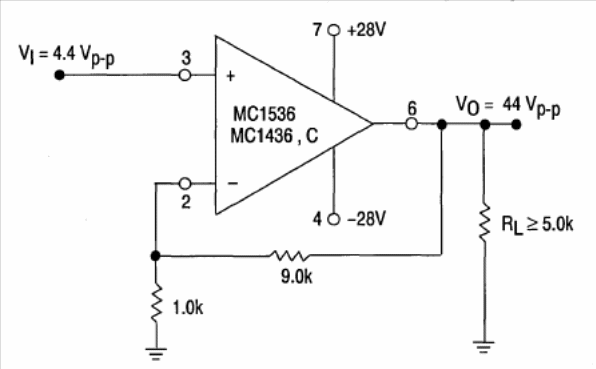

The MC1436 can also be used on this circuit suggested by the 1993 Motorola Linear Interface ICs. The power source must be symmetrical and the output voltage is 44 Vpp for maximum gain.
