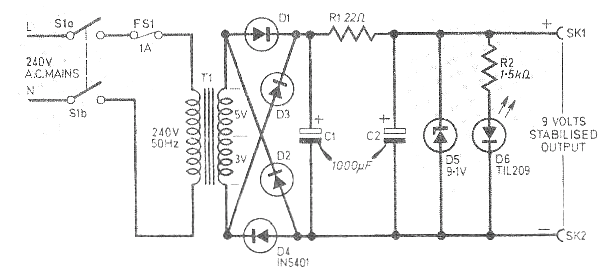

This circuit was obtained from an English magazine from 1977. The magazine no longer exists, but the circuit can be easily assembled. This power supply provides maximum currents of the order of 50 mA under a 9 V voltage. The transformer is 3 + 3 V x 200 mA and the diodes can be 1N4002. The zener is 1 W.
