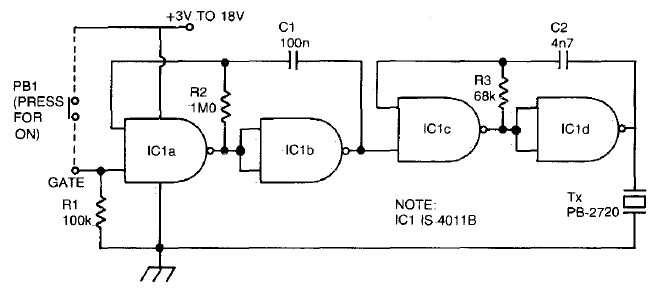

This variation of the previous circuit produces a pulsating sound when the sensor is activated. The circuit can also be used as a shield by observing the supply voltage. C1 controls the flashing of the sound produced. This component can be changed over a wide range of values.
