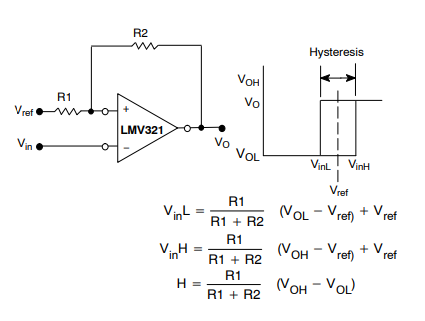

This very low voltage circuit with the LMV321 was obtained from its own datasheet. The circuit can be powered with 2.5 V and has its characteristics given by the formulas next to the diagram. The datasheet can be accessed at: https://www.mouser.com/datasheet/2/308/LMV321-D-1323411.pdf
