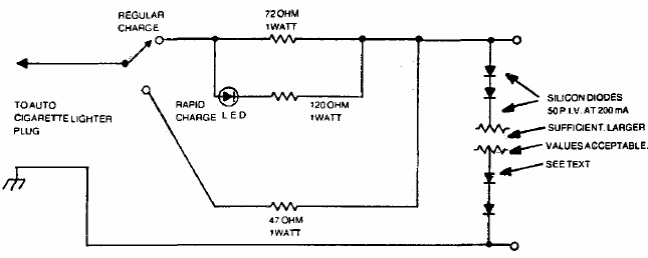

This small automotive NiCad battery charger uses only passive components and has the number of diodes given by the desired voltage at maximum charge. The circuit has a charge indicator in the form of an LED.
| Clique na imagem para ampliar |
This small automotive NiCad battery charger uses only passive components and has the number of diodes given by the desired voltage at maximum charge. The circuit has a charge indicator in the form of an LED.
