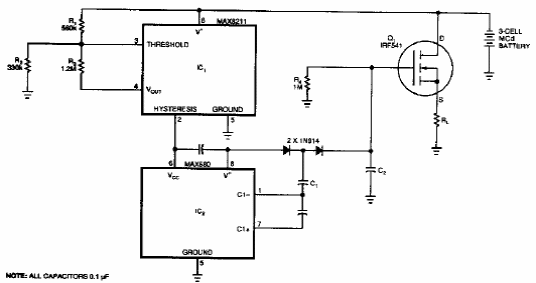

The purpose of this circuit is to disconnect the battery in case of an excessive charge current, thus protecting it. The circuit is from an American 1990s documentation. Equivalent FETs according to battery current may be used.
