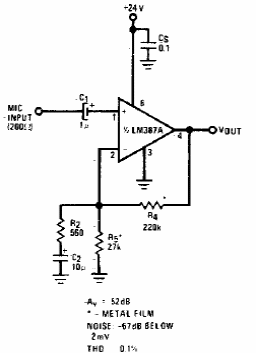

This circuit was obtained from an American publication of the 80's. The integrated circuit is of the time and the power supply does not need to be symmetrical. The circuit can be adapted for modern operational amplifiers with lower voltages.
