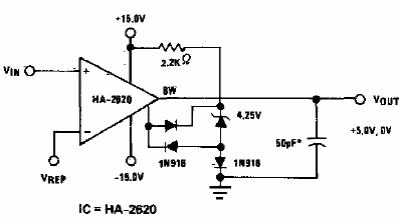

High impedance comparator (CB5088E)

Details
Written by: Newton C. Braga



     This circuit is from a Harris Semiconductor datasheet from the 80s. However the circuit can be implemented with other operational ones. The power supply must be symmetrical.
