Sound modulated light (CB5986E)

Details: Written by: Newton C. Braga

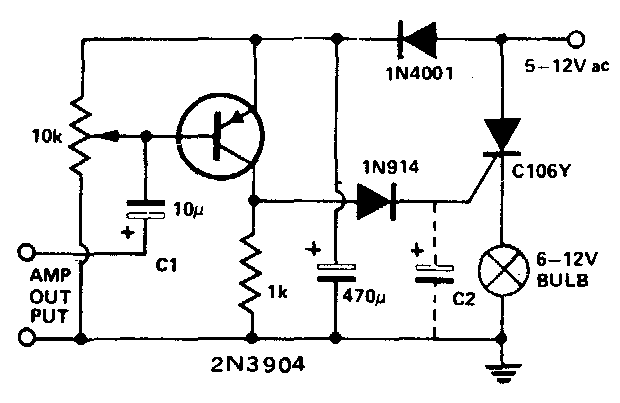

This circuit causes an incandescent lamp to flash according to the input audio signal. The SCR must be fitted with a heatsink. The output of the amplifier must be isolated.
