Stereo Amplifier (T113E)

Details
Written by: Newton C. Braga

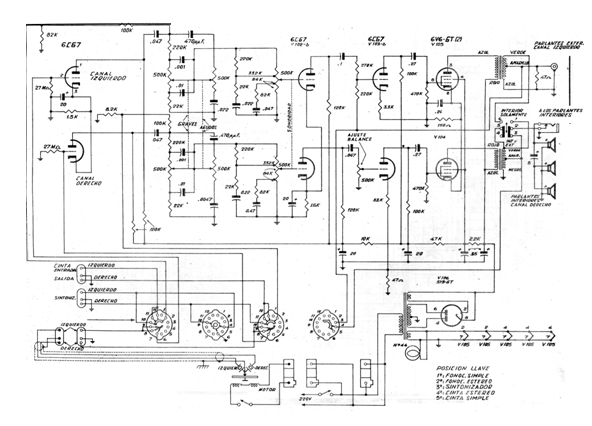

   This is a commercial circuit of a stereo amplifier of the 1970s. The critical components of this circuit are the transformers used in the output and power, in addition to the tubes.
