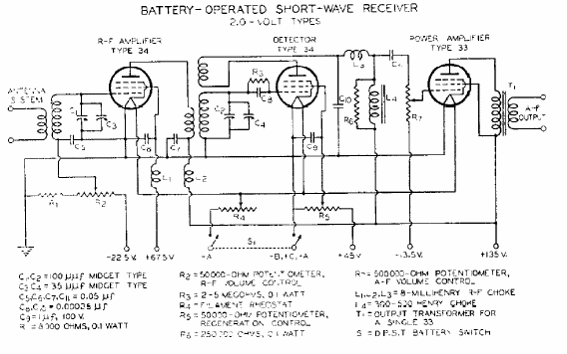

Battery short-wave receiver (T360E)

Details
Written by: Newton C. Braga



     Battery powered this 3-tube receiver was found in a 1937 RCA manual. The circuit has several polarization voltages that are supplied by batteries as used at the time.
