Frequency Splitter for Loudspeakers (CB784E)

Details: Written by: Newton C. Braga

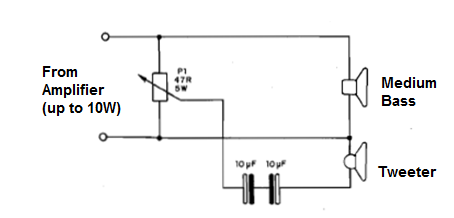

This circuit is indicated for small low power amplifiers allowing the use of a tweeter. The circuit has a treble control. The potentiometer is a wire wound type for 5W or more.
