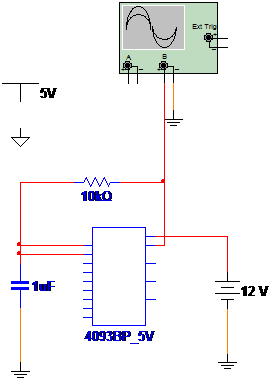

This oscillator can run in frequencies up 10 MHz depending on the Power supply voltage. The 1 µF capacitor can be replaced by capacitors in the range between 100 pF and 100 µF. Power supply can range from 3 to 12 V. The output signal is square.
To download the simulation files and Netlist - click here (msb0125.zip)
