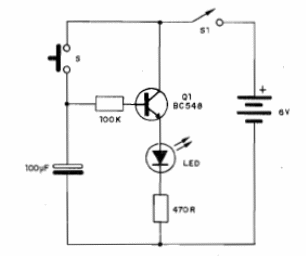

Pressing S1 the LED glows by a time interval depending on the capacitor. Time intervals in the range from some seconds to some minutes can be achieved with capacitors in the range from 10 µF to 1 000 µF. A 9 V battery or for AA cells can be used as power supply.
