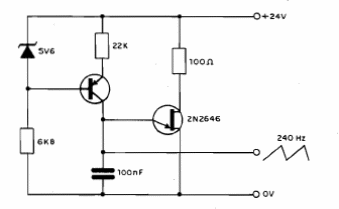

This circuit using an Unijunction Transistor produces a 240 Hz saw tooth signal. The frequency depends on the capacitor and the zener is the element that gives to the signal its linearity. The circuit can be powered from 12 to 24 V supplies.
This circuit using an Unijunction Transistor produces a 240 Hz saw tooth signal. The frequency depends on the capacitor and the zener is the element that gives to the signal its linearity. The circuit can be powered from 12 to 24 V supplies.
