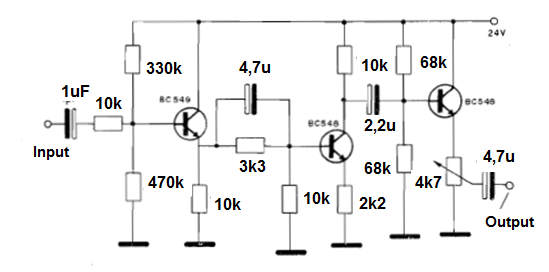

This high quality audio preamplifier uses three bipolar transistor and is powered from 24 V obtained from a power supply or the amplifier which the circuit operates. The BC549 is important because it is a low noise transistor. Current drain is only 2 to 4 mA.
![](/images/sampledata/cb/cir0823_0001.png)
