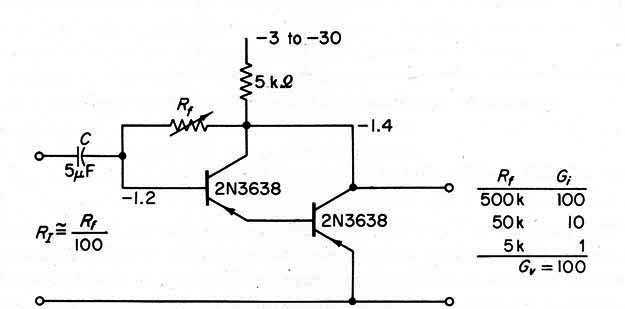

This circuit was found in a 1968’s publication and uses germanium transistors. Equivalents can be used, and the characteristic of the circuit is given by the formulas in the diagram.
