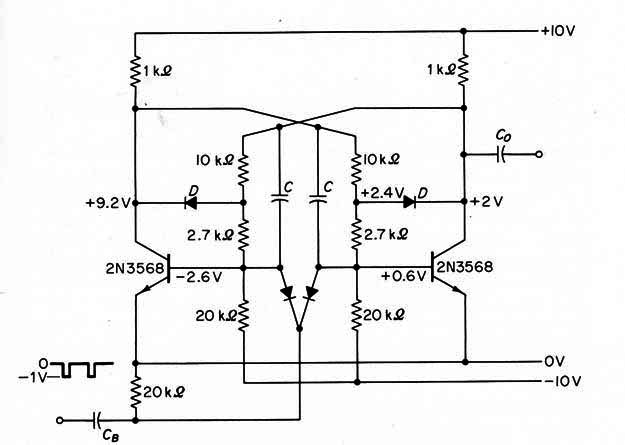

This flip-flop or bistable multivibrator is triggered by a signal applied to the base of the transistors. The circuit must be powered from a dual source. It was found in a publication of the year 1968 and the transistor can be replaced by modern typs with small changes in the resistor.
