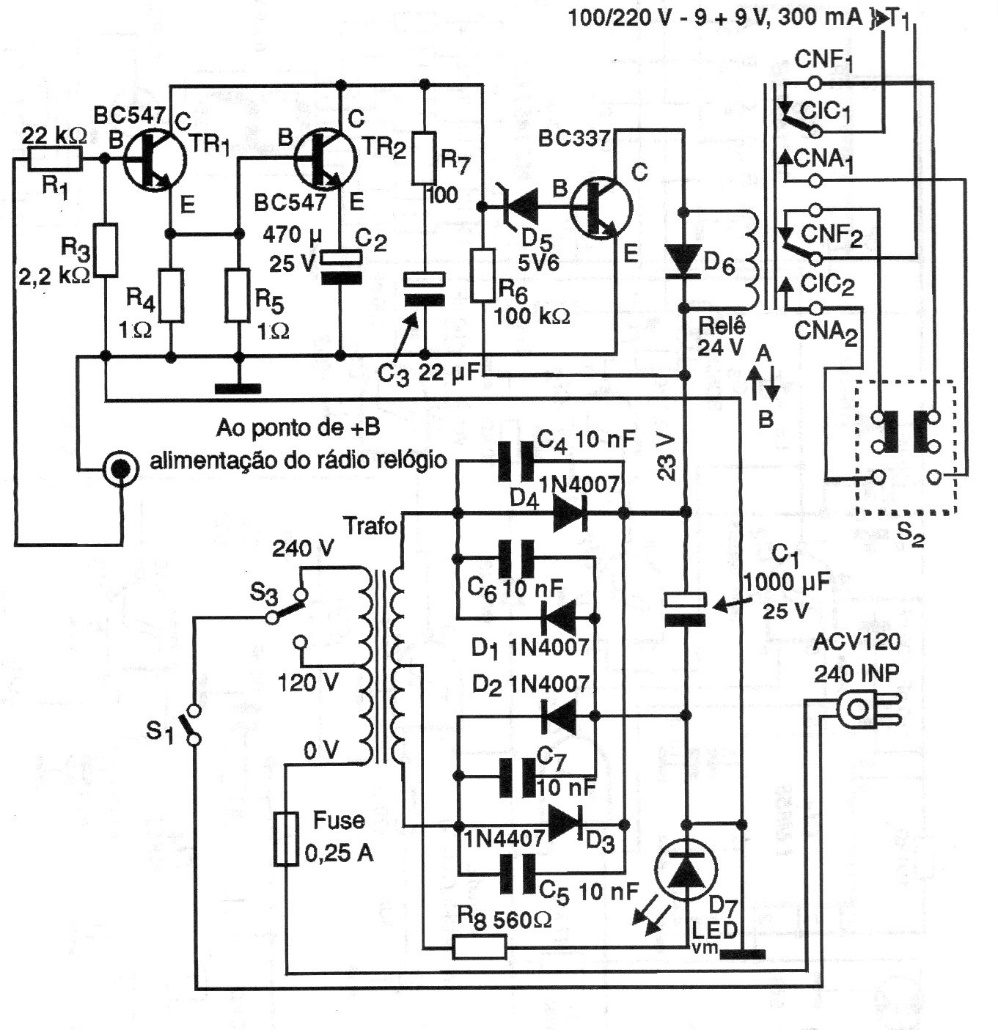

This circuit maintains an external load connected for a maximum of 60 minutes. The circuit is from 2000 documentation and has an inversion system for driving the external load. The relay used is of two reversible contacts and the maximum load current depends on this relay.
