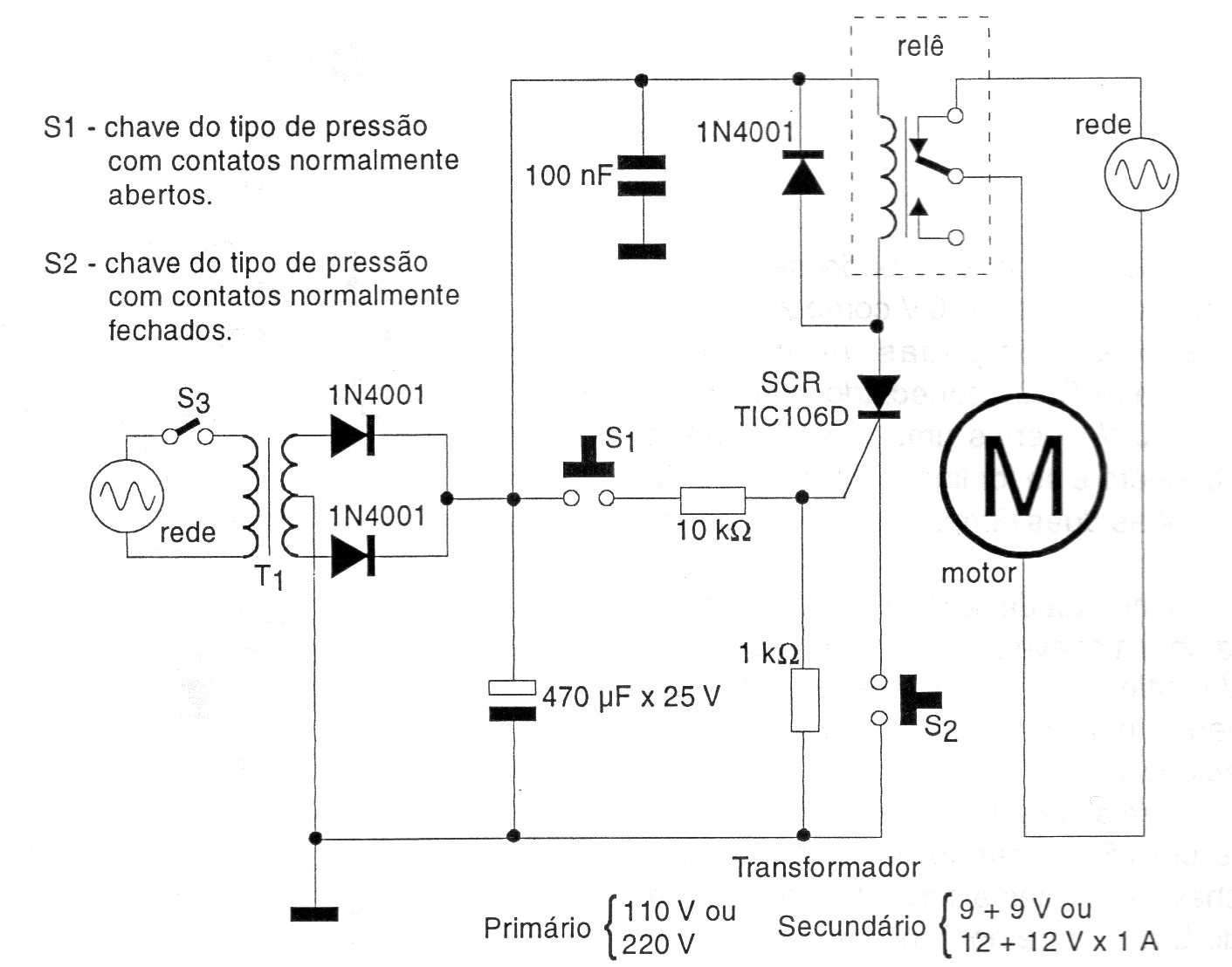

This circuit allows the bistable control of an engine or other load through a relay. The circuit is based on an SCR that does not need a heatsink, as it only controls the low coil current relay. The transformer must have voltage according to the relay used.
| Clique na imagem para ampliar |
