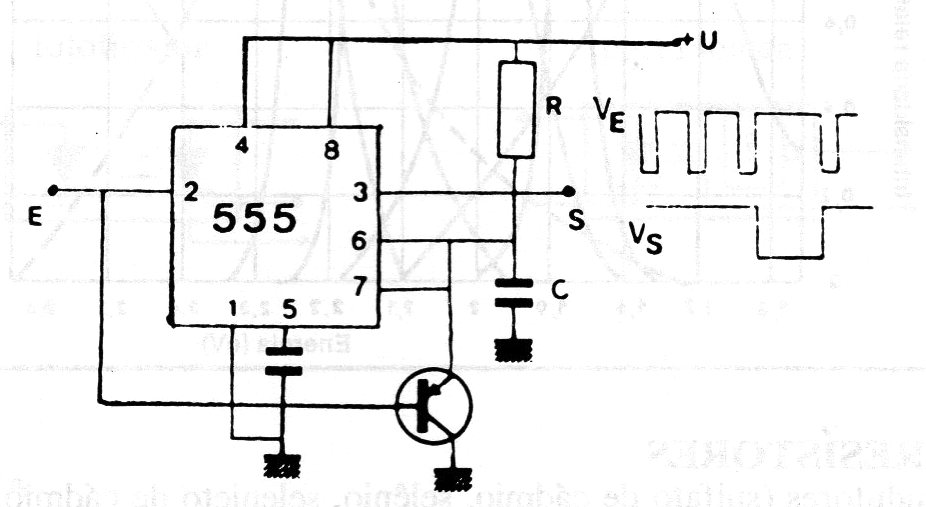

The circuit shown detects abnormalities in a pulse train as an irregular separation between them or the absence of a pulse. R and C must be calculated to have a time constant that corresponds to the normal frequency of the monitored pulse train. The transistor can be a BC558. This circuit is also called an absence of pulse detector.
