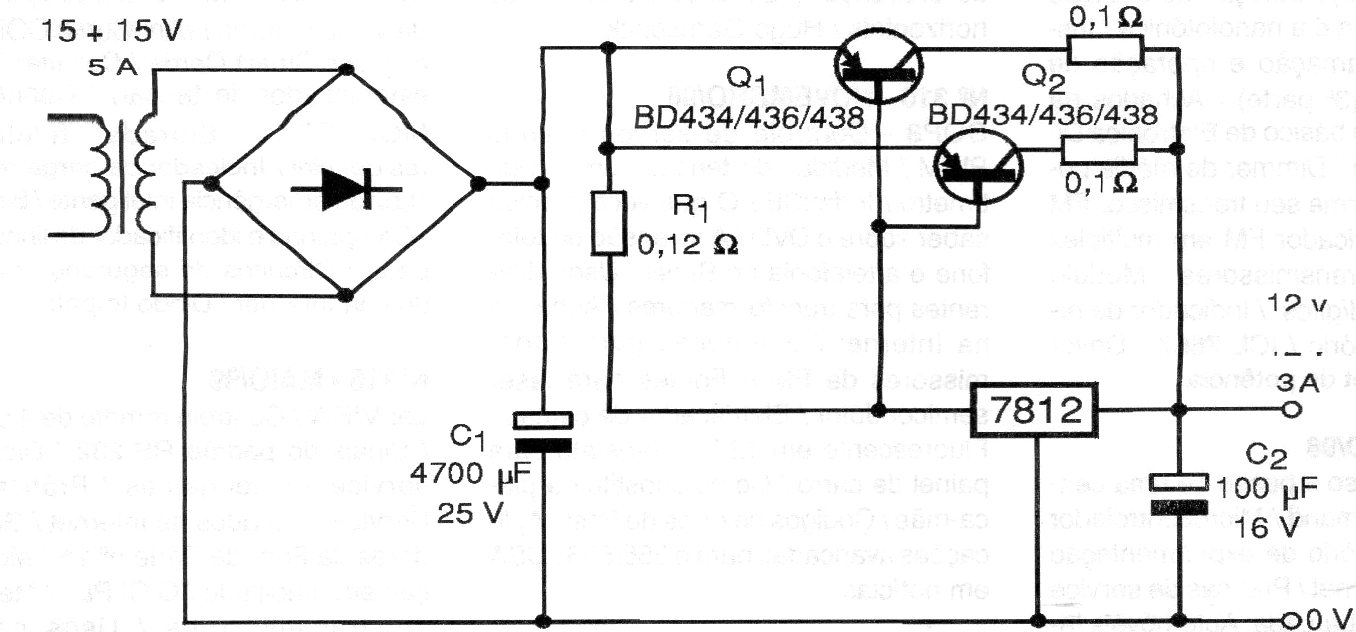

This source can be found in several articles on this site. Transistors must be equipped with heat sinks and TIP32 can be used. The bridge diodes can be 1N5402 or a 3A bridge.
| Clique na imagem para ampliar |
12 V x 3 A power supply (CB17384E)
- Details
- Written by: Newton C. Braga
