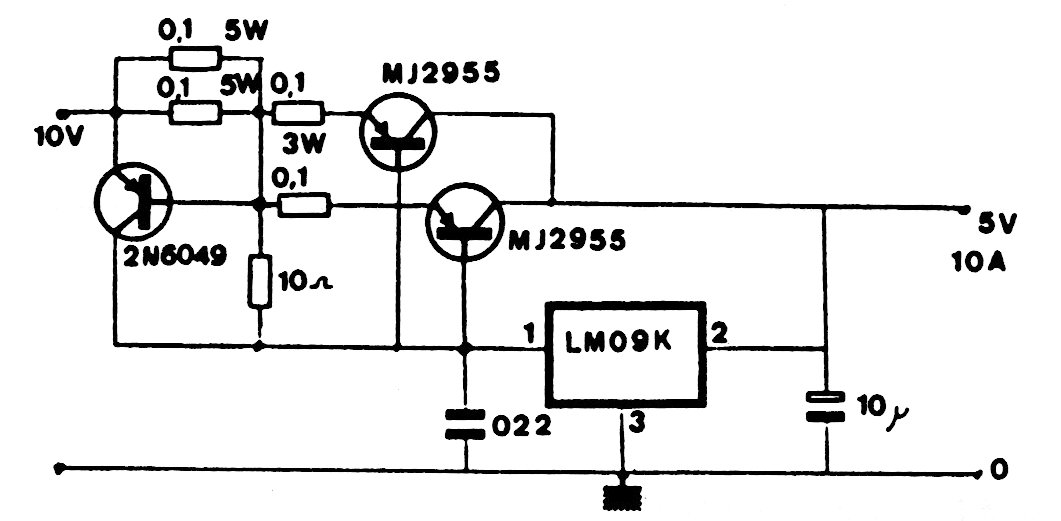

We found this voltage regulator for 5 V with current up to 10 A in an old manual of integrated circuits. The components used are not very common today and the transistors must be mounted on excellent heat sinks.
| Clique na imagem para ampliar |
5 V x 10 A Regulator (CB19129E)
- Details
- Written by: Newton C. Braga
